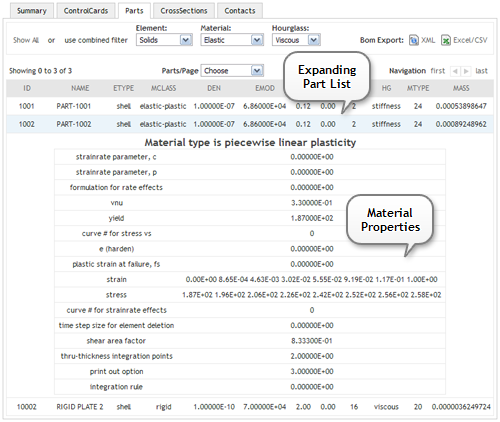

Completed the implementation of the viewing the bill of materials of the finite element model with full listing of element type, mass, material family, etc… Additionally, when each part row is clicked, it opens a new layer showing the detailed material information and any related curve display. Our idea was to have one place to [...]
Archive for May, 2006

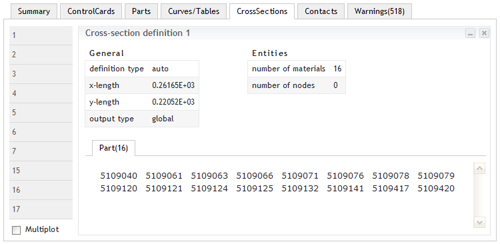

Implemented viewing of cross-section information. LS-DYNA® outputs nodes/elements for automatic cross-section definition (via *SET_PART) and this information is captured in the D3HSP file as shown below.
